Description

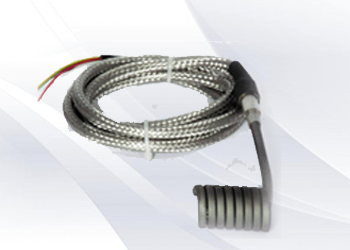

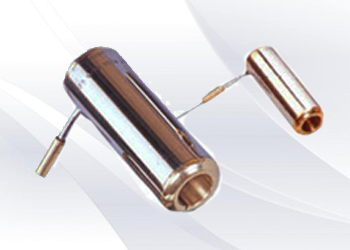

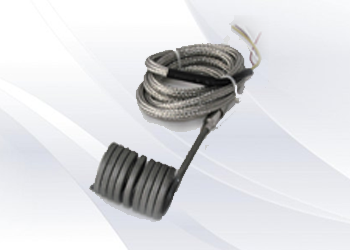

We are Manufacturer, Supplier, Exporter of Cast Coil Heaters, Cast Coil Heater,. Our setup is situated in Pune, Maharashtra, India.The new cast coil heater from data industries offers a direct replacement heater in many nozzle applications. All elements of the heater have been designed to work together to give and efficient and reliable heater that correctly clamps to the nozzle. The inner sleeve is made of Nickel Plated Copper or brass for maximum heat transfer to the nozzle., typically the thermal expansion. Coilheaters are an advanced concept of thermal engineering which have a construction similar to high watt density cartridge heaters. These heaters are also known as high pertormance tubular heaters or cable heaters.The basic construction of these heaters involves compacted MgO, high temperature resistance wire and stainless steel tube. These heaters can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles,and manifold,die castnozzles,packaging,machines etc.

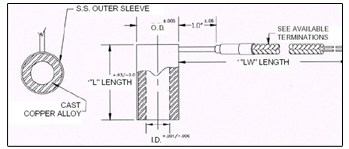

Technical data : Nickel Plated Copper Inner Sleeve For Improved Heat Transfer

  •   Slip Fit Tolerance +/- 0.013 mm (0.0005”)
  •   Outer Sleeve Made Od Stainless Steel 304
  •   Better Than +/-2% Resistance Tolerance Hermetically Sealed For Long Life
  •   Wattage & voltage tolerance +/-2%
  •   Surface loading up to 90/w in sq
  •   Surface temperature 550 deg. C

Applications & advantages:

  •   Heating nozzle & busing for hot runner mold
  •   D similar application for pressure die casting nozzles
  •   Highly non-corrosive
  •   Maximum heat transfer due to more contact area
  •   Even temperature profile
  •   Ss casting acts as an insulator
  •   Avoids decoiling & withstands pressure during

Cast-in Heaters : Plastics Processing

Datta Industries is a leading manufacturer of cast-in electric heaters for the plastics processing industry. Inside diameter and widths are customized to fit any extruder size available. Datta controls all anufacturing processes from element manufacturing through our foundry and CNC machining to deliver heater products that exceed your expectations. These heaters are manufactured in both in aluminum and bronze alloys depending on the operating temperatures required. A wide variety or electrical and cooling tube terminations are available as standard options.
