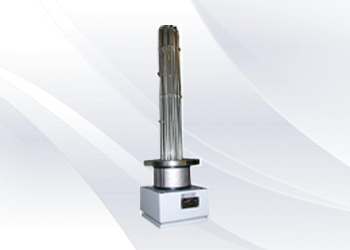

We are Manufacturer, Supplier, Exporter of Oil Immersion Heaters, Flange Mounted Oil Immersion Heaters, Flange Immersion Heater, Commercial Immersion Heater. Our setup is situated in Pune, Maharashtra, India. Both round flange and square flange models of Oil Immersion Heaters are a great choice for applications requiring larger wattages. Flanged Oil Immersion Heaters are designed for installation into pipe body, tank or pressure vessel using standard pipe size. These heaters are available in available in wide selection of rates, sizes and sheath materials suitable for the heating requirements of oil. Flanged Oil immersion heaters are very efficient since all energy that is generated is dissipated directly into the medium, which is being heated. All flanged heater models incorporate tubular heater construction welded or brazed into a carbon steel pipe flange. Name 1 terminal enclosures are supplied with all standard units. Moisture resistant and explosion proof models are also available. All flanged Oil immersion heaters we offer you including heaters for hazardous locations.
TYPE | WATTS | VOLTS | DEPTH OF IMMERSION< | FLANGE |
OIL/1000 | 1000 | 230 | 425 | 2.5"BSP" |
OIL/1500 | 1500 | 230 | 425 | 2.5" BSP" |
OIL/2000 | 2000 | 230 | 425 | 2.5"BSP" |
OIL/3000 | 3000 | 230 | 425 | 2.5"BSP" |
OIL/4000 | 4000 | 230/440 | 550 | 2.5"BSP" |
OIL/5000 | 5000 | 230/440 | 550 | 2.5"BSP" |
OIL/6000 | 6000 | 230/440 | 550 | 2.5"BSP" |
OIL/9000 | 9000 | 230/440 | 550 | 2.5"BSP" |
Application | Solution or Application | Alkaline or Acid Content ( Est. % by Volume ) |
Sheath Material | Typical Watt Density ( watts / sq.in. ) |
Oil Heating* | Low Viscosity Oil | ----- | Steel | 23 |
Medium Viscosity Oil | ----- | Steel | 15 | |
High Viscosity Oil | ----- | Steel | 6 |
Features of Oil Transmission Heaters
Applications of Oil Transmission Heaters
