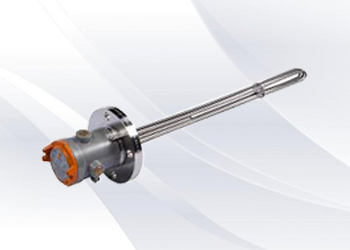

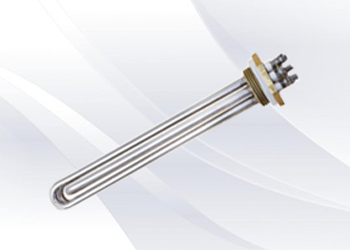

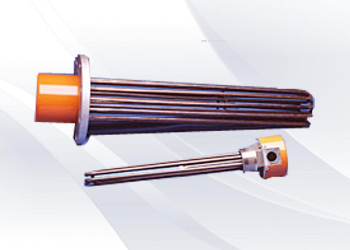

We are Manufacturer, Supplier, Exporter of Water Immersion Heaters, Commercial Immersion Heater. Our setup is situated in Pune, Maharashtra, India. These are both round flange and square flange models are a great choice for applications requiring larger wattages. Flanged immersion heaters are designed for installation into a pipe body, than or pressure vessel using standard pipe size. These heaters are available in a wide selection of rates, sizes requirements of water, Flanged Water immersion heaters are very efficient since all energy that is generated is dissipated directly into her medium, which is being heated. All flanged heater models incorporate tubular heater construction welded or brazed into a carbon steel pipe flange. Name 1 terminal enclosures are supplied with all standard units. Moisture resistant and explosion proof models are also available. All flanged Water immersion heaters we offer you including heaters for hazardous locations

water-immersion-heater
water-immersion-heater
TYPE WATTS VOLTS DEPTH OF
IMMERSION
FLANGE
W/125/2000 2000 230 225 1.25"BSP
W/150/2000 2000 230 225 1.50"BSP
W/125/3000 3000 230 280 1.25"BSP
W/125/3000 3000 230/440 225 1.25"BSP
W/2/3000 3000 230/440 225 2" BSP
W/2/4000 4000 230/440 260 2" BSP
W/2/5000 5000 230/440 325 2" BSP
W/2/6000 6000 230/440 380 2" BSP
W/2/9000 9000 230/440 450 2" BSP
W/2/12000 12000 230/440 600 2.5"BSP
water-immersion-heater
water-immersion-heater

Features:

  •   Rugged construction
  •   Long life metal sheath
  •   High conductivity element
  •   Superior performance at element bends
  •   Easy access to terminal wiring

Applications:

  •   Boiler equipment
  •   Freeze protection
  •   Hot water storage tanks
  •   Food processing units
  •   Warming equipment's
TYPE WATTS VOLTS DEPTH OF
IMMERSION
FLANGE HEATER
W 1000 240 1000 225 / 125 1 1/4" 1 NO.
W 1500 240 1500 225 / 150 1.25"BSP 1 NO.
W 2000 240 2000 325 / 225 1.25"BSP 1 NO.
W 3000 240 3000 424 / 225 1.25"BSP 1 NO.
MID 3000 240 3000 125 M 14 or cup type 1 NO.
Application Solution or Application Alkaline or Acid Content (Est. % by Volume) Sheath Material Typical Watt Density (watts/qs.in.)
Water and Very Mild Solution Clean Water pH6 to pH8 Neutral Copper 45
Process Water or Very Mild Solutions PH5 to pH9 2-3 % SS 304 45
Mild Solutions 5-6 % SS 316 45
Have Solutions< 6 % and Above Incoloy 20
